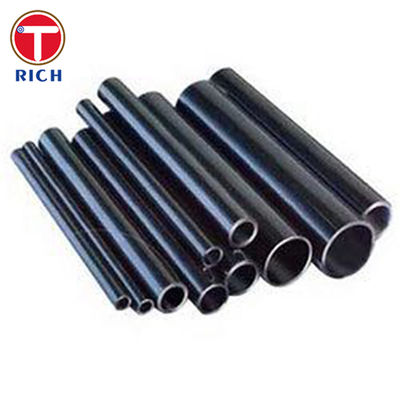

Name: JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose
Brand: TORICH INTERNATIONAL LIMITED
SKU: JIS G3444
Price: 3,450.00 USD
Availability: InStock

MOQ:	1 tonnellata
prezzo:	Negoziabile
Imballaggio standard:	In fasci o in scatole di legno.
Periodo di consegna:	20-40 giorni
metodo di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di approvvigionamento:	60000 tonnellate/tonnellate all'anno

Informazioni di dettagli

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine

Zhejiang/Cina

Marca

TORICH

Certificazione

ISO9001 ISO 14001 TS16949

Numero di modello

JIS G3444

Grado:

STK290 STK400 STK490 STK500 STK540

Spessore:

10 - 200 millimetri

Applicazione:

Scopo strutturale generale

Standard:

ASTM

Certificazione:

CE,BV,ISO9001,API,ISO

Lega o no:

Non legato, è legato.

Tecnica:

Freddo disegnato, freddo disegnato/rotto freddo/freddo disegnato/freddo disegnato roll-roll

Seconda o seconda?:

Non secondari

Forma di sezione:

Girare

Diametro esterno (round):

10 - 630 mm

Pipe speciali:

Tubo di acciaio senza cuciture di precisione

Superficie:

Requisiti dei clienti

Forma:

Forma rotonda

Nome prodotto:

tubi di acciaio senza saldatura

Tipo:

Tubo d'acciaio rotondo senza cuciture

Descrizione del prodotto

JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose 0

JIS G3444 Carbon Steel Seamless Tubes (STK290 / STK400 / STK490 / STK500 / STK540) for General Structural Purpose

Material Overview

These are carbon steel seamless or welded tubes conforming to Japanese Industrial Standard JIS G3444. They are designed for general structural use: civil engineering, architecture, piles, frameworks, etc. The grades STK290, STK400, STK490, STK500, STK540 denote different strength levels.

Specification

Property	Details
Standard	JIS G3444 (e.g. version 2006 / 2021)
Grades	STK290, STK400, STK490, STK500, STK540
Forms	Seamless, Electric Resistance Welded (ERW), Automatic Arc Welded, Butt Welded
Outer Diameter Range	~21.7 mm to 1016.0 mm
Wall Thickness Range	~2.0 mm to ~22 mm (depending on OD etc.)

Chemical Composition

Grade	C (max)	Si (max)	Mn (max) / range	P (max)	S (max)
STK290	–	–	–	0.050 %	0.050 %
STK400	0.25 %	–	–	0.040 %	0.040 %
STK490	0.18 %	0.55 %	1.65 %	0.035 %	0.035 %
STK500	0.24 %	0.35 %	0.30 ‒ 1.30 %	0.040 %	0.040 %
STK540	0.23 %	0.55 %	1.50 %	0.040 %	0.040 %

Mechanical Properties

Here are the mechanical property minima required by the standard for the different grades. This covers tensile strength, yield or proof stress, weld-zone tensile strength, bending & flattening tests. Elongation also specified.

Grade	Tensile Strength, min (Rm) [N/mm²]	Yield Point / Proof Stress, min [N/mm²]	Weld Tensile Strength, min [N/mm²]	Elongation, min %	Flattening / Bend Tests
STK290	290	—	290	30 % (Seamless & Butt welded) / 30 % (ERW etc.) / smaller reductions for larger OD or other methods	Flattening: distance between flat plates = 2/3 D; Bend: 90° bend, inside radius = 6D
STK400	400	235	400	~23 % for most tube manufacturing; lower for certain large diameters or weld types	Flattening: 2⁄3 D; Bend: 90°, 6D
STK490	490	315	490	~23 % or similar; reduced in certain test piece directions or larger ODs	Flattening: 7⁄8 D; Bend: 90°, 6D
STK500	500	355	500	somewhat lower elongation (~15-18 %) for larger tubes or more highly worked materials; see standard	Flattening: 7⁄8 D; Bend: 90°, 8D
STK540	540	390	540	similar to STK500, depending on OD and method; elongation tends to drop somewhat with the higher strength grades	Flattening: 7⁄8 D; Bend: 90°, 8D

Key Features

Graded Strength Levels: Users can select the grade according to structural needs— from basic strength (STK290) to high strength (STK540).
Versatility in Manufacturing: Available seamless or welded, with finishing options. Allows adaptation to application demands and cost/performance trade-offs.
Good Ductility / Toughness especially in lower grades—ensures resistance to brittle failure, suitable for bending, welding, fabrication.
Rigorous Quality Tests: Flattening, bend tests, weld tensile strength etc. help ensure integrity.
Dimensional & Tolerance Standards ensure interchangeability and predictable behavior.

Applicable Standards

JIS G3444 itself is the primary executing standard.
Related standards for chemical analyses and finished product analysis: JIS G0320 (heat / melt analysis), JIS G0321 (product analysis)
Mechanical test method standards cited or used in conjunction: flattening test, bending test, tensile test etc. (within JIS G3444).

Application Domains

Domain	Specific Uses
Civil Engineering & Construction	Support columns, beams, frameworks, building facades, scaffolding, footings, piles for foundations, retaining structures, structural bracing.
Infrastructure	Piles for bridges, piles for landslide suppression, retaining walls, utility structures.
Architectural Structures	Towers, handrails, perimeter fences, decorative structures where structural load + aesthetic finish needed.
Industrial Buildings / Equipment	Frameworks, supports for equipment, overhead structures, racks, platforms.
Temporary / Modular Structures	Scaffolding systems, temporary shelters, shipping container adaptations.

JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose 1

JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose 2

JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose 4

JIS G3444 Carbon Steel seamless Tubes For General Structural Purpose 6

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
